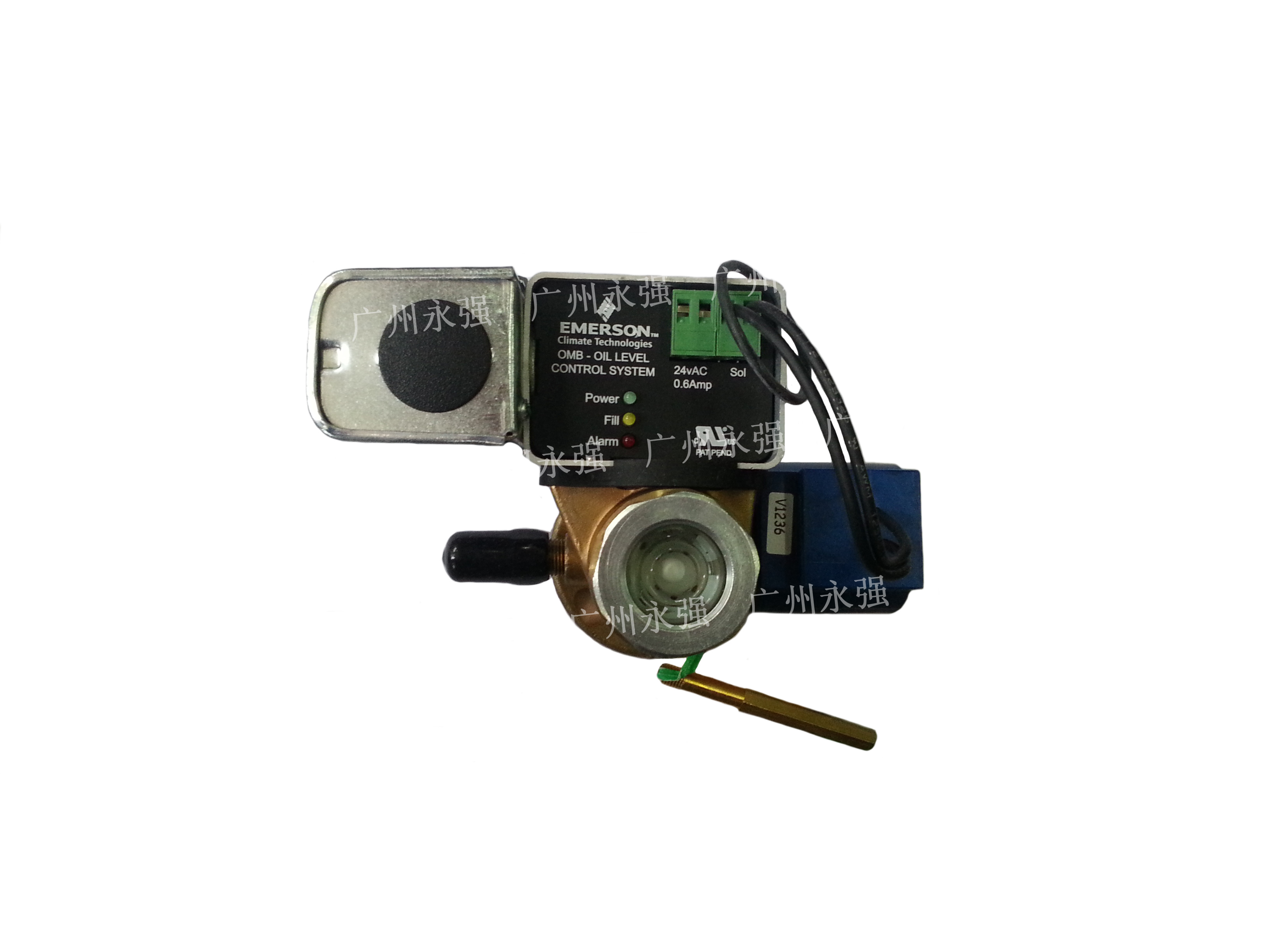

OMB series electronic oil balancer
OMB series electronic balance is used in the compressor crankcase oil level of oil level protection control
Features:
1. The accurate control of oil level
2. Bubble prevention design, prevent similar photoelectric switch alarm happens by mistake
3. The inlet screen and impurity adsorption magnetic ring, ensure accurate control
4. Lock function, prevent the compressor to run at low oil level
5.Self-contained unit with oil level sensor and integral solenoid to manage oil level supply
6.Reverse Hall-effect sensor for precise measure-ment of oil level and protection from sensor magnetic debris contamination
7.Alarm and status indication by LEDs
8.SPDT output contact for compressor shut-down and alarming
9.Easy installation by sightglass replacement
10.Adapters suitable for various types of scroll compressors(not required for reciprocating compressors)
11.Signal generated by gravity based float not prone to errors from foaming like optical sensors
12.Debris retention magnet for reliable operation
13.Flourescent floating ball
|
